High Efficiency 80 Inch Length 5V V Belt For Machine

Henan Shuangli Rubber Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

High Efficiency 80 Inch Length 5V V Belt For Machine

Brand Name : Teyma

Model Number : 5V

Certification : ISO 9001:2015 ; ISO 14001:2015 ; ISO 45001:2018

Place of Origin : Anyang,China

MOQ : 1000 pieces

Price : Negotiable

Payment Terms : T/T, L/C, D/A

Supply Ability : Three Millions Pieces Per Month

Delivery Time : 20 work days

Packaging Details : Woven bag ,40-foot container

Type : 5V-2050

Matetial : Rubber

Color : Black

Top width : 16mm

Height : 13.5mm

Angle : 40°

Length(Inch) : 80 Inch

Length(mm) : 2050 mm

Contact Now

High Efficiency Rubber Black 5V V Belt - 2050 , Wrapped V Agriculture Belt For Machine

Description:

The surface temperature of the V-belt is relatively stable under normal conditions, and there is no big difference in the surface temperature of the V-belt of each device. The manufacturer of the V-belt said that mastering the temperature value of the V-belt will help us quickly solve some practical problems.

First of all, if the V-belt is too loose, slippery or other abnormal phenomena, the surface temperature will be significantly higher than the normal temperature, and the smell of rubber can even be smelled in serious cases. If the actual measured temperature is very high, the V-belt will break in a short time. Therefore, the higher the surface temperature of the triangle belt, the greater the possibility of fracture. When it approaches a certain limit value, it is bound to occur.

All in all, different brands of V-belts use different materials and different quality, so the temperature that can withstand and the ultimate temperature resistance are also different. Therefore, countermeasures and preparations must be taken before use to avoid accidents.

Structure

-Cloth cover layer: Cotton/polyester blend
-Top rubber: NR,SBR
-Reinforcement body: Polyester cable cord
-Bottom rubber: NR,SBR

Technical Info:
Consistent performance in multiple V-Belt drives - ensures all belts will measure within ARPM matching standards
Use pulleys made to ARPM standards
Oil & Heat Resistant: Durability in tough environments

Model:

Type Top width(mm) Belt Thickness (mm) Angle (°) Production scope (lnch)
O(M) 10 6 40° 20-120
A 13 8 40° 25-150
B 17 11 40° 28-400
C 22 14 40° 48-500
D 32 19 40° 99-600
E 38 23 40° 120-600
3V 9.5 8 40° 25-150
5V 16 13.5 40° 28-400
8V 25.5 23 40° 48-500
SPA 12.7 10 40° 25-150
SPB 16.3 13 40° 28-400
SPC 22 18 40° 48-500
Can be customized by OEM

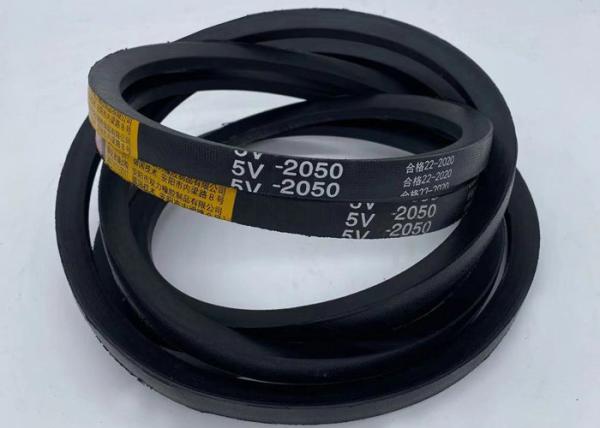

Product Image:

High Efficiency 80 Inch Length 5V V Belt For MachineHigh Efficiency 80 Inch Length 5V V Belt For MachineHigh Efficiency 80 Inch Length 5V V Belt For MachineHigh Efficiency 80 Inch Length 5V V Belt For Machine

About us:

Henan Shuangli Rubber Co., Ltd. is a scientific and technological company integrating research, development and production of triangle belts. It has more than 310 employees.The factory covers an area of 30,000 square meters and a building area of 15,000 square meters,and it’s only one Triangle belt manufacturer in north Henan. It won the honorary titles successively over the years,such as the National Export-oriented of Advanced Units and the Key Protection Enterprises in Henan Province,the Contract-abiding and Trust-worthy Enterprise, Credit Henan AAA Credit Enterprise. In 2017, it passed the certification of ISO9001, ISO14001, OHASA18001 International Quality System, environmental,occupational,healthy and safety certification.The company has 2 national patents currently. In 2015, it was rated as a famous trademark in Henan Province. In 2019, there was no blind spot in the coverage of cities and counties nationwide. At the same time, it was selected as one of the top ten brands of the national triangle belt.
The company’s products are sold by agents all over the country with the advantages of super high quality and complete specifications. The products are sold in Henan, Hebei, Shandong, Shanxi, Hunan, Hubei, Guangdong, Guangxi Jiangxi, Hainan, Ningxia, Heilongjiang, Jilin, Liaoning, Inner Mongolia, Xinjiang, Lhasa and all major provinces, cities and counties, and autonomous regions across the country, they are also exported to Laos, Myanmar, Pakistan, Kyrgyzstan and other countries, and have been trusted and praised by the majority of sellers and users.

Q&A:

Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and Woven bag. If you have legally registered patent,

we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages

before you pay the balance.

Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?

A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends

on the items and the quantity of your order.

Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
