High Efficiency 16mm Top Width 33inch Agriculture V Belt

Henan Shuangli Rubber Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

High Efficiency 16mm Top Width 33inch Agriculture V Belt

Brand Name : Teyma

Model Number : 5V

Certification : ISO 9001:2015 ; ISO 14001:2015 ; ISO 45001:2018

Place of Origin : Anyang,China

MOQ : 1000 pieces

Price : Negotiable

Payment Terms : T/T, L/C, D/A

Supply Ability : Three Millions Pieces Per Month

Delivery Time : 20 work days

Packaging Details : Woven bag ,40-foot container

Type : 5V-850

Matetial : Rubber

Color : Black

Top width : 16mm

Height : 13.5mm

Angle : 40°

Length(Inch) : 33 Inch

Length(mm) : 850 mm

Contact Now

High Efficiency Rubber Black 5V V Belt - 850 , Classical Wrapped V-Belt

Description:

The reason that causes the V-belt to lose its effect is the transmission slipping. When the tension of the V-belt does not meet the requirements, the loose V-belt slips in the groove of the pulley, and the friction generated will cause the belt to heat up and accelerate its two sides to become smooth; and the smooth surface reduces the friction coefficient, resulting It is easier to slip, forming a vicious circle. In addition, oil stains in the pulley grooves can also cause transmission slippage.

V belts are ideal for lightweight or fractional horsepower use. They also function with high horsepower, shock loads and high-tension drives for rough applications. The flexibility of a V belt lends itself to being used on a majority of belt drives and conveyor systems. V belts are very commonly applied as power transmission belts; they can be used in industrial process equipment as well as components in internal combustion engines. Industrial V belts lend themselves to the efficient and safe operation of all kinds of industrial process equipment. They can be applied in agricultural equipment, mining equipment, in generators and in many other contexts. In combustion engines, V belts are often applied as timing belts, which are used to regulate the operation of an engine. V belts can also be used as conveyor belts, though they are more commonly employed as power transmission tools.

Structure

-Cloth cover layer: Cotton/polyester blend
-Top rubber: NR,SBR
-Reinforcement body: Polyester cable cord
-Bottom rubber: NR,SBR

Technical Info:
Consistent performance in multiple V-Belt drives - ensures all belts will measure within ARPM matching standards
Use pulleys made to ARPM standards
Oil & Heat Resistant: Durability in tough environments

Model:

Type Top width(mm) Belt Thickness (mm) Angle (°) Production scope (lnch)
O(M) 10 6 40° 20-120
A 13 8 40° 25-150
B 17 11 40° 28-400
C 22 14 40° 48-500
D 32 19 40° 99-600
E 38 23 40° 120-600
3V 9.5 8 40° 25-150
5V 16 13.5 40° 28-400
8V 25.5 23 40° 48-500
SPA 12.7 10 40° 25-150
SPB 16.3 13 40° 28-400
SPC 22 18 40° 48-500
Can be customized by OEM

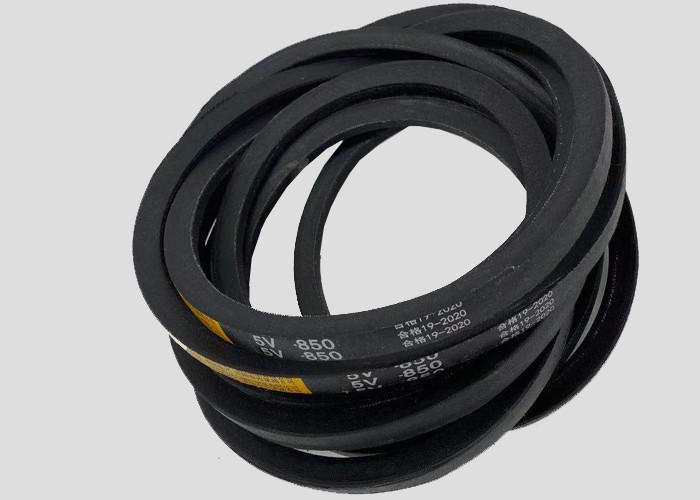

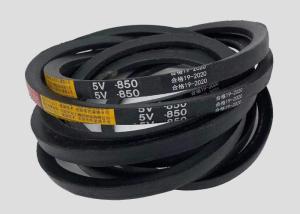

Product Image:

High Efficiency 16mm Top Width 33inch Agriculture V BeltHigh Efficiency 16mm Top Width 33inch Agriculture V BeltHigh Efficiency 16mm Top Width 33inch Agriculture V BeltHigh Efficiency 16mm Top Width 33inch Agriculture V Belt

About us:

Henan Shuangli Rubber Co., Ltd. is a scientific and technological company integrating research, development and production of triangle belts. It has more than 310 employees.The factory covers an area of 30,000 square meters and a building area of 15,000 square meters,and it’s only one Triangle belt manufacturer in north Henan. It won the honorary titles successively over the years,such as the National Export-oriented of Advanced Units and the Key Protection Enterprises in Henan Province,the Contract-abiding and Trust-worthy Enterprise, Credit Henan AAA Credit Enterprise. In 2017, it passed the certification of ISO9001, ISO14001, OHASA18001 International Quality System, environmental,occupational,healthy and safety certification.The company has 2 national patents currently. In 2015, it was rated as a famous trademark in Henan Province. In 2019, there was no blind spot in the coverage of cities and counties nationwide. At the same time, it was selected as one of the top ten brands of the national triangle belt.
The company’s products are sold by agents all over the country with the advantages of super high quality and complete specifications. The products are sold in Henan, Hebei, Shandong, Shanxi, Hunan, Hubei, Guangdong, Guangxi Jiangxi, Hainan, Ningxia, Heilongjiang, Jilin, Liaoning, Inner Mongolia, Xinjiang, Lhasa and all major provinces, cities and counties, and autonomous regions across the country, they are also exported to Laos, Myanmar, Pakistan, Kyrgyzstan and other countries, and have been trusted and praised by the majority of sellers and users.

Q&A:

Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and Woven bag. If you have legally registered patent,

we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages

before you pay the balance.

Q3. What is your terms of delivery?

A: EXW, FOB, CFR, CIF, DDU.

Q4. How about your delivery time?

A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends

on the items and the quantity of your order.

Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.

Q7. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from.
